This project by Genesis Kuku House Ltd exemplifies a well-planned and constructed chicken house, addressing key factors for successful poultry farming such as space optimization, ventilation, and accessibility.
Reach out to us and we’ll be able to shedule a site visit.
This particular project showcases a spacious, multi-tiered chicken house designed to maximize space and efficiency. Key features of the structure include:

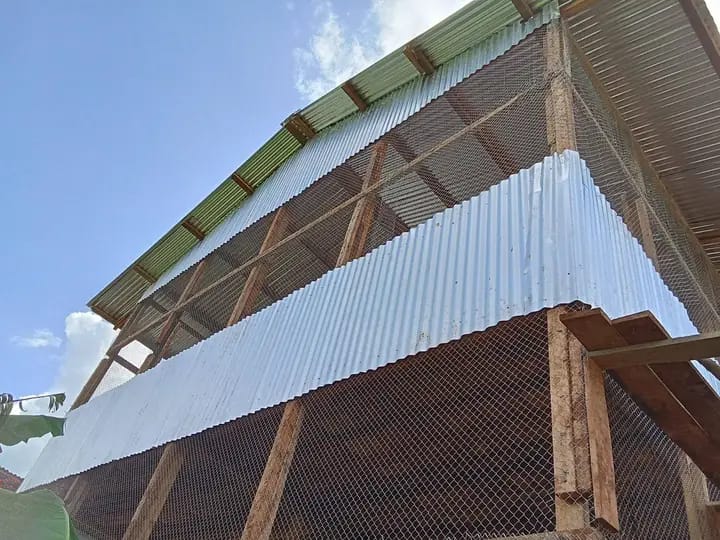

The chicken house is constructed primarily from wood, with a metal sheet roof and wire mesh siding to ensure ventilation and protect the chickens from predators. The multi-tiered design optimizes the use of vertical space, allowing for a larger number of birds to be housed within a smaller footprint.

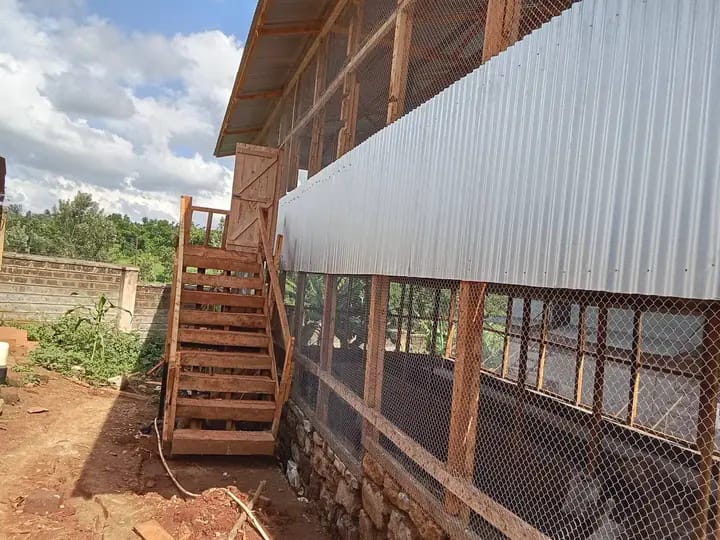

A wooden staircase provides easy access to the upper levels, facilitating feeding, cleaning, and egg collection.
The wire mesh walls allow for ample ventilation, crucial for maintaining air quality and regulating temperature and humidity inside the house. This design also maximizes natural light, which is beneficial for the chickens' well-being.
This building rests on the soil of Murang'a county, ideally located away from residential and industrial areas, in elevated areas with good drainage to prevent waterlogging.
The size of the house is 22.6ft (width) by 50ft (length) by 11.5ft (high). It is designed to hold 1,792 chickens with A44 cage type for each storey house.
For successful poultry farming, it's important to consider biosecurity measures and ensure the availability of essential amenities like water and electricity.
Challenges encountered during the construction of such a chicken house. These challenges often fall into several key areas:
Sourcing appropriate materials, such as wood, iron sheets, and wire mesh, was a challenging, particularly in the area where these materials were not readily available. Transporting these materials to the construction site, also presented a logistical hurdles.
Construction projects are often susceptible to weather-related delays. We undertook this work during the rainy season, whereby our working was significantly hampered.
The terrain and soil type of the construction site can pose challenges. Uneven ground required additional preparation work, to ensure structural integrity of the building was achieved.
Construction projects often face budget limitations. Unexpected expenses or cost overruns can strain financial resources and potentially compromise the quality or completion of the project.
A project completion report for a chicken house utilizing a battery cage system

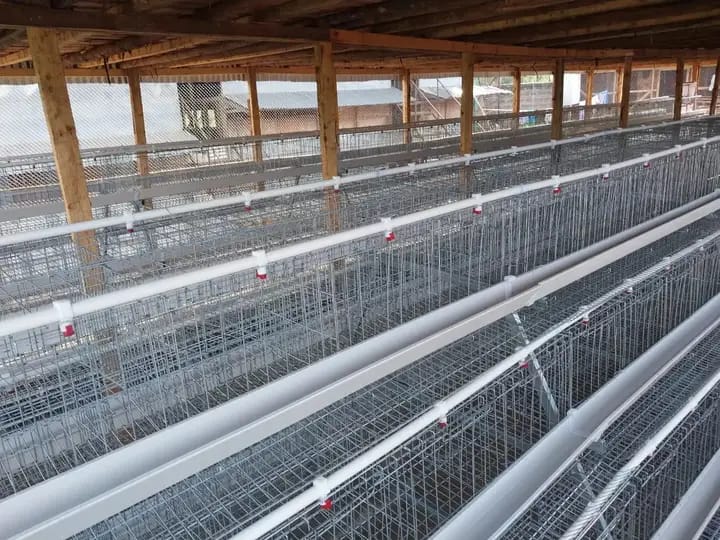

>> Type of Housing: Battery cage system
>> Capacity: 1,792 chickens with A44 cage type for each storey house.
>> Foundation: Concrete, 1-1.5 feet below and above ground level.
>> Walls: Materials used, a combination of blocks, timber with wire mesh for ventilation.
>> Roofing: Material and structure - a combination of timber and iron sheets.
>> Ventilation: Proper ventilation to control temperature and humidity.

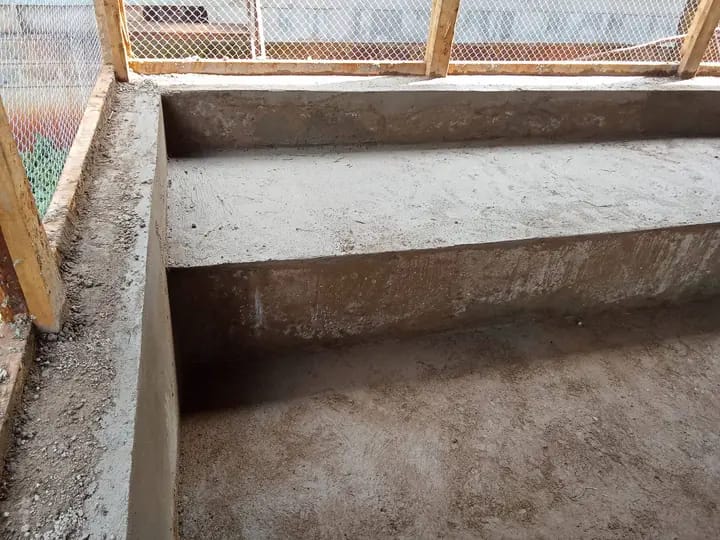

>> Flooring: Concrete for easy cleaning.
Feeding System: Fitted with manual feeding system.
>> Watering System: Automatic drinkers to ensure constant water supply.
>> Egg Collection: Fitted with manual system for collecting eggs.

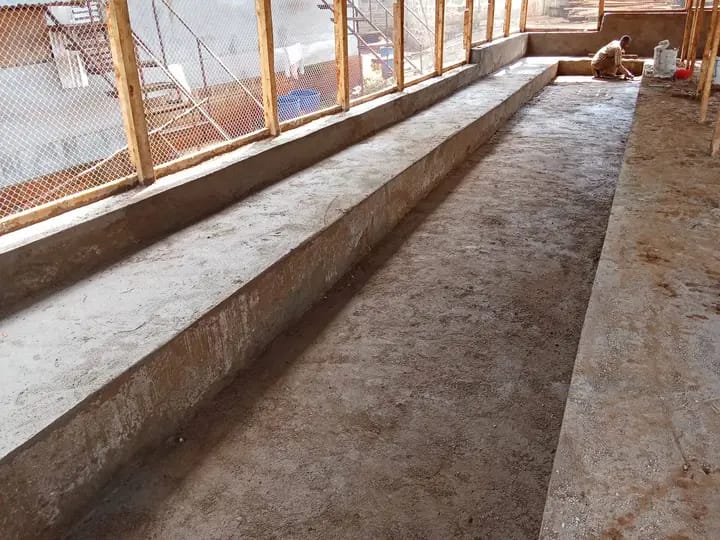

>> Waste Management: Fitted with manure removal trenches, design for easy cleaning.
>> Lighting: Artificial lighting to regulate laying cycles.
